Tube Motor Guide: Which Ellard Motor to Choose for Each Roller Garage Door Build
- Ellard
- 21 hours ago
- 4 min read
For Garage Door Installers, choosing the right tube motor is about more than simply opening and closing a door.
Correct specification helps installations run smoothly, reduces avoidable call-backs, and gives the end user a better overall experience. Whether you are manufacturing complete roller garage doors, replacing existing motors, or specifying for a new project, selecting the right product matters.
At Ellard, our roller garage door motor range is built for the trade, with dependable performance, multiple torque options, and compatible controls designed to make installation straightforward.
This guide breaks down the Ellard motor range, compares the options, and explains when to choose each one. We also cover the control panels and accessories that complete the system.
How to Choose the Right Motor
Before ordering, assess:
Door width and height
Curtain weight
Slat type
Insulation level
Frequency of use
Required opening speed
Need for manual override
If the door is close to the upper limit of a smaller motor, moving up a size is often the better trade decision.

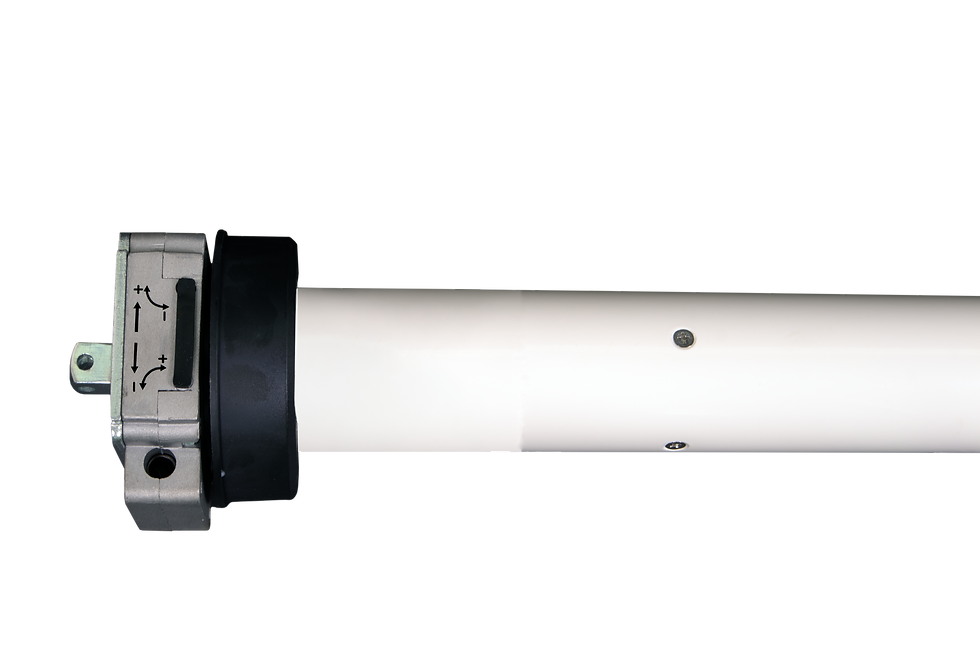

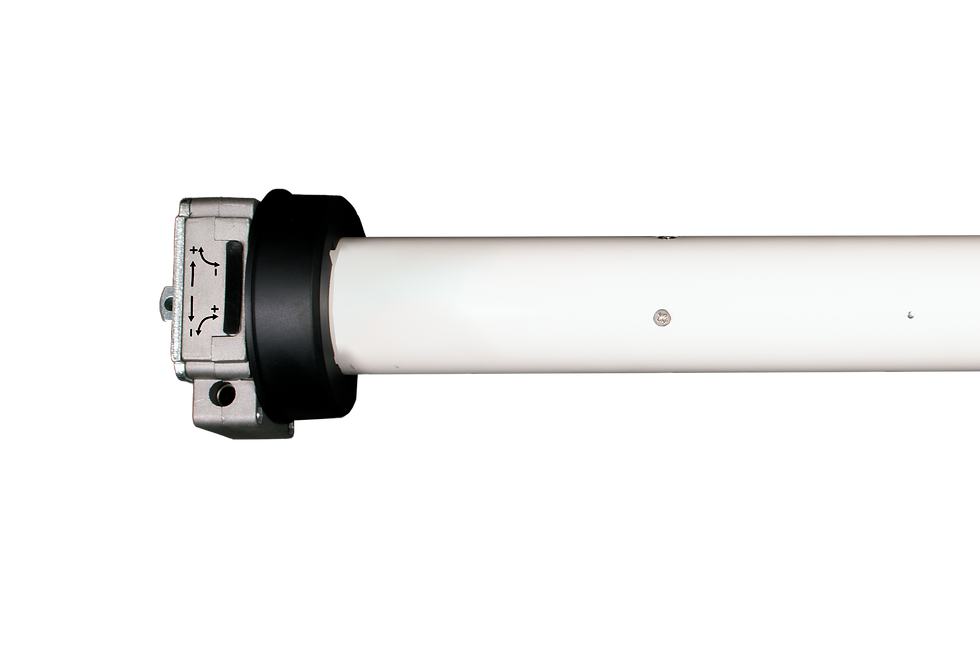

Ellard Garage Door Tube Motor Range
Ellard roller garage door motors are available in multiple torque levels to suit different domestic garage door builds.
Explore Our Garage Door Tube Motors
ED45/40 – 40Nm Tubular Motor
BodySize: 45mm
Speed: 15rpm
Warranty Range: 5 Years
Manual Override as standard
Best for:
Smaller single garage doors
Lighter curtain weights
Standard domestic use
Why choose it:
A compact entry point for lighter applications where dependable performance is needed without overspecifying the job. Faster 15rpm speed helps provide efficient opening times.
ED45/50 – 50Nm Tubular Motor
Body Size: 45mm
Speed: 12rpm
Manual Override: Available
Warranty Range: 5 Years
Best for:
Standard single garage doors
Most everyday domestic installs
General replacement work
Why choose it:
One of the most versatile options in the range. A strong fit for common roller garage door applications where balanced power and compact sizing matter.
MM45/50 – 50Nm Tubular Motor
Body Size: 45mm
Speed: 15rpm
Warranty Range: 2 Years
Manual Override as standard
Best for:
Value-led installations
Standard domestic jobs
Competitive quotes
Why choose it:
Offers the same 50Nm torque in a 45mm body, ideal when price sensitivity is a key factor.
MM59/80 – 80Nm Tubular Motor
Body Size: 59mm
Speed: 15rpm
Warranty Range: 2 Year
Best For:
Larger single garage doors
Value-focused larger installs
Why choose it:
A practical upgrade from 45mm motors where additional lifting force is needed. Delivers 80Nm performance in a compact 59mm platform, making it well-suited to larger domestic doors while remaining cost-effective for competitive installations.
ED59/80 – 80Nm Tubular Motor
Body Size: 59mm
Speed: 15rpm
Warranty Range: 5 Years
Best for:
Larger single garage doors
Heavier curtain systems
Installers wanting extra margin
Why choose it:
A smart step up from the 45mm range when additional lifting force is needed. Good option where 50Nm motors may be close to limit.
ED59/100 – 100Nm Tubular Motor
Body Size: 59mm
Speed: 12rpm
Manual Override: Available
Warranty Range: 5 Years
Best for:
Double garage doors
Heavier insulated curtains
Premium domestic installs
Why choose it:
Strong all-round solution for larger doors where reliable daily performance and longevity matter.
GR59/100 – 100Nm Tubular Motor
Body Size: 59mm
Speed: 12rpm
Manual Override: Available
Warranty Range: 2 Years
Best for:
Standard double garage doors
Budget-conscious larger installs
Why choose it:
Provides 100Nm performance in the GR range when price competitiveness is important.
GR59/140 – 140Nm Tubular Motor
Body Size: 59mm
Speed: 7rpm
Manual Override: Available
Warranty Range: 2 Years
Best for:
Oversized domestic doors
Heavy curtain applications
Bespoke builds
Why choose it:
When 100Nm may be borderline, this gives additional lifting force for heavier or wider systems. Lower rpm suits controlled heavy-duty lifting.
ED59/150 – 150Nm Tubular Motor
Body Size: 59mm
Speed: 9rpm
Manual Override: Available
Warranty Range: 5 Years
Best for:
Specialist heavy-duty garage doors
High-spec bespoke builds
Space-limited applications needing more torque
Why choose it:
High torque within a 59mm platform, useful where more force is required without moving into a larger industrial body size.
Manual Override: When to Include It
Manual override remains an important feature for many homeowners.
Choose it when:
The garage is the main access point
No secondary pedestrian access exists
The customer asks about power failures
You want to strengthen the sales offer
It is easier to specify upfront than to retrofit later.
Control Panels: The Other Half of the System
A quality motor still needs the right control panel. Ellard offers two key options for roller garage door automation.
TVNRG – Premium and Flexible
TVNRG is ideal for higher-spec installs that require broader functionality.
Best for:
Premium domestic installs
Courtesy Light options
Wireless or wired safety edge compatibility
Photocell integration
Easier diagnostics
Enhanced end-user experience
Choose TVNRG when flexibility and upgrade potential matter.
Simple – Straightforward and Competitive
Simple is designed for standard domestic installations where dependable automation and competitive pricing are the priority.
Best for:
Everyday installs
Wired safety edge compatibility
Budget-sensitive quotes
Straight replacements
Simple control requirements
Choose Simple when the job needs solid functionality without unnecessary extras.
Accessories That Add Value
The right accessories can improve convenience and perceived value.
Popular additions include:
These small upgrades can strengthen margins while improving the customer offer.
Safety Devices
Safety devices are not optional extras. They should be considered part of every compliant installation.
Depending on the application, this typically includes:
Safety edges (wired or wireless, depending on system)
Photocells where required for enhanced protection or site-specific risk
These components are essential for safe operation and should always be selected in line with system requirements, installation environment, and relevant standards.
Performance You Can Rely on
In roller garage door systems, performance rarely comes down to a single component. It comes down to how well the motor, control system, and accessories are matched to the door in front of you.
That is where specification makes the difference on site. A well-chosen motor removes strain from the system. A well-matched control panel reduces setup time and keeps commissioning predictable. The right accessories improve the day-to-day experience without adding complexity for the installer.
The Ellard range is designed around that principle: giving installers defined choices that map to real door conditions, not guesswork.
Get the match right from the start, and everything that follows tends to fall into place. Need help planning your next installation? Our team is on hand to help.
